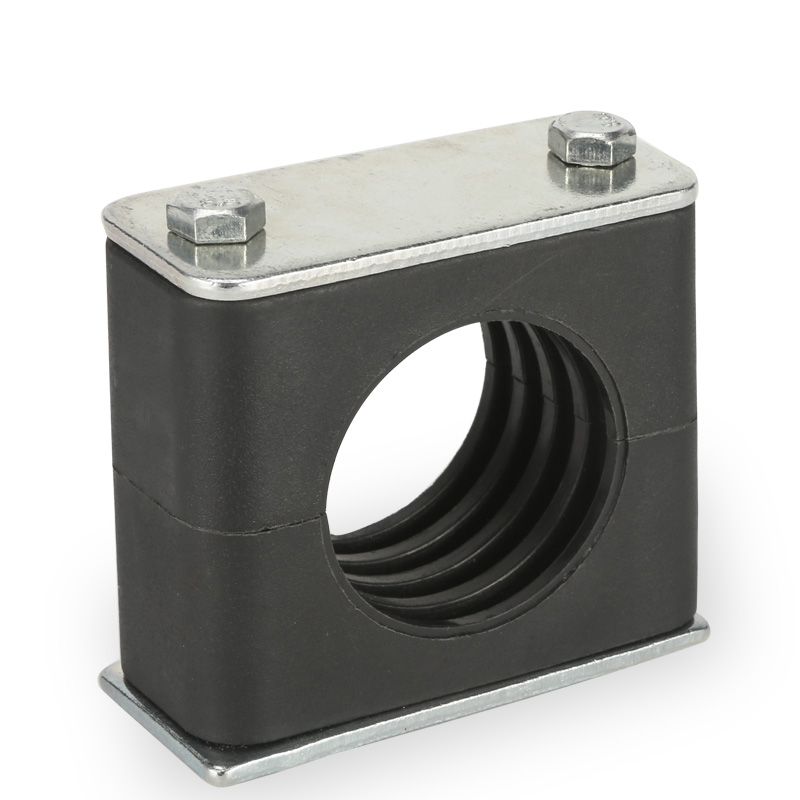

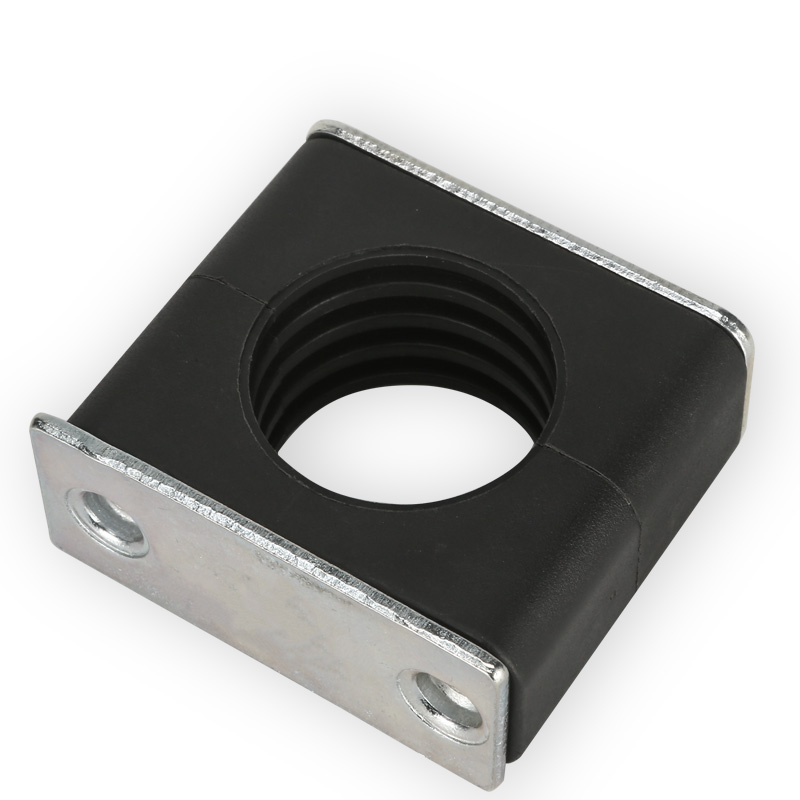

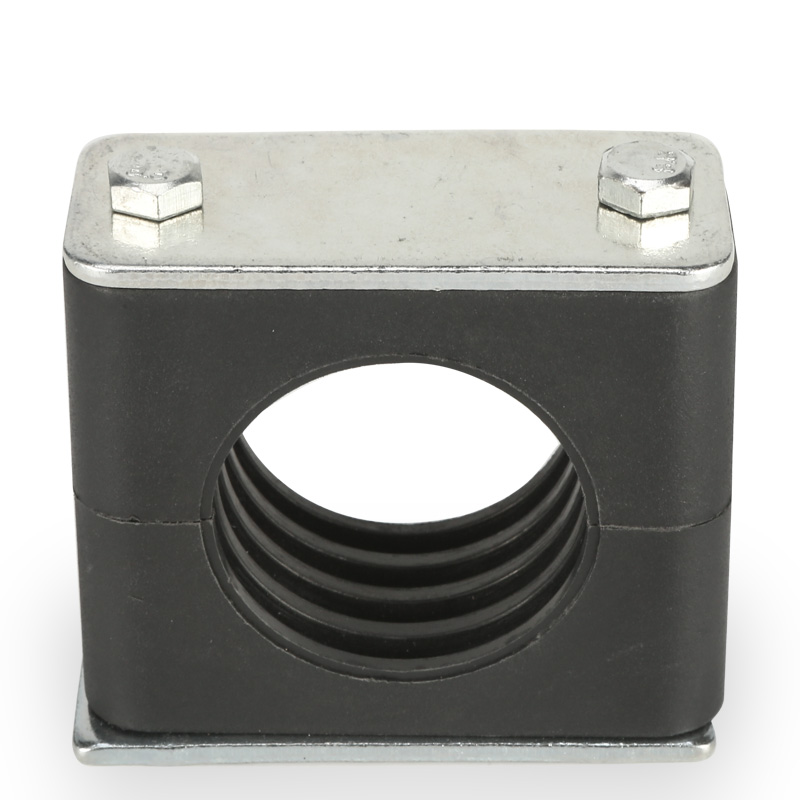

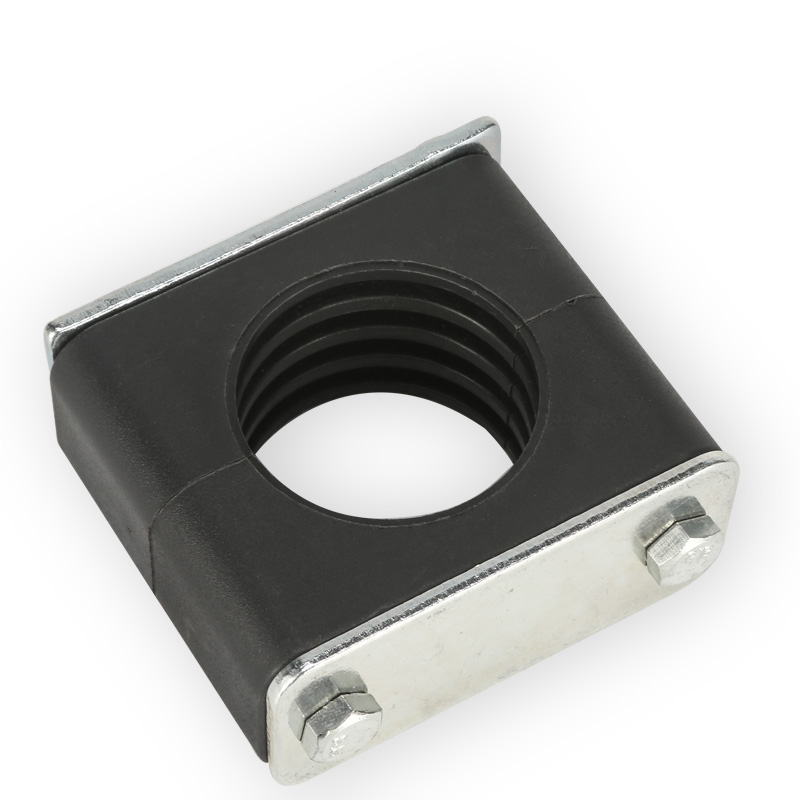

Pipe and Tube Support Clamps / Lightweight Black Nylon Hose Clamp / Pipe Insulation / Hex Screw Nylon Square Pipe or Tube Clamp

Material	Clamp body: plastic PP-polypropylene /PA-polyamide /AL-aluminium
	cover plate: carbon steel (Zn-galvanised) or stainless steel (SS 304/316)
	Bolt: carbon steel (Zn-galvanised) or stainless steel (SS 304/316)
Structure	Hexagon head bolt/hexagon socket bolt+cover plate+clamp body+welded base plate/rail nuts
Usage/Application	Pipe Fitting
Clamp Type	HYDRAULIC
Surface Type	Galvanized
Condition	New
Din	3015
Type	Standard (Light Duty)
Size	1 /4’’ to 2 ½’’ – 6mm~102mm
Pressure	1500 PSI for Light Duty and more than 1500 PSI for Heavy Duty

Clamp is made as per DIN3015 and meets national heavy machinery standard. This model has 8 series (fixing pipe outer diameter from 6mm~102mm),applicable to the pipeline fixing environments of low mechanical strength. It is used to fix the pipelines of medium pressure and low pressure (PN≤8Mpa)with oil, water and gas as medium in the mechanical hydraulic systems of meltallurgy, ship-making, petroleum, chemistry, oceaneering, engineering machinery and such other industries.
