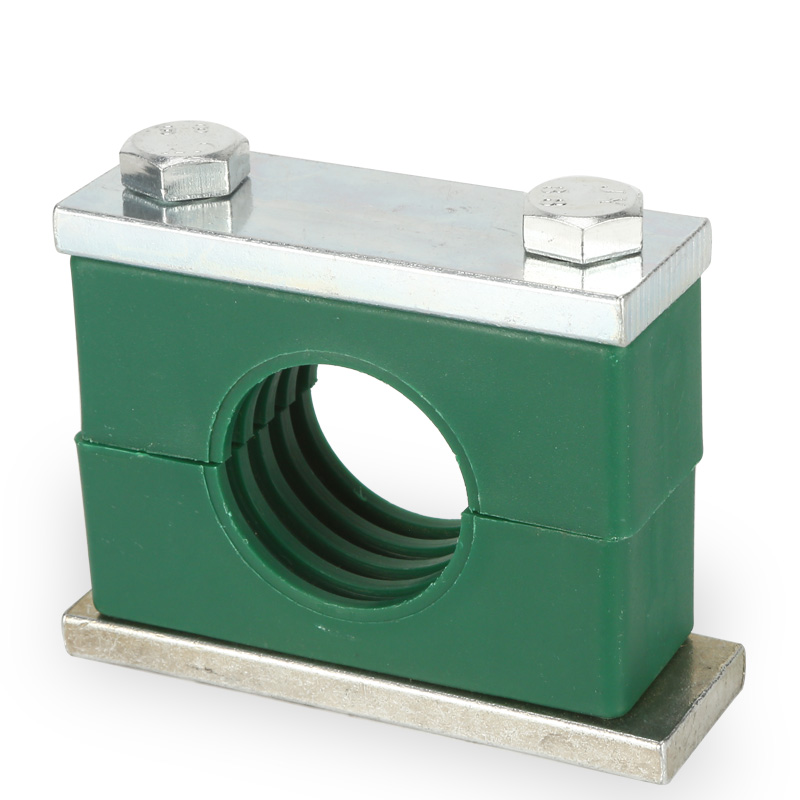

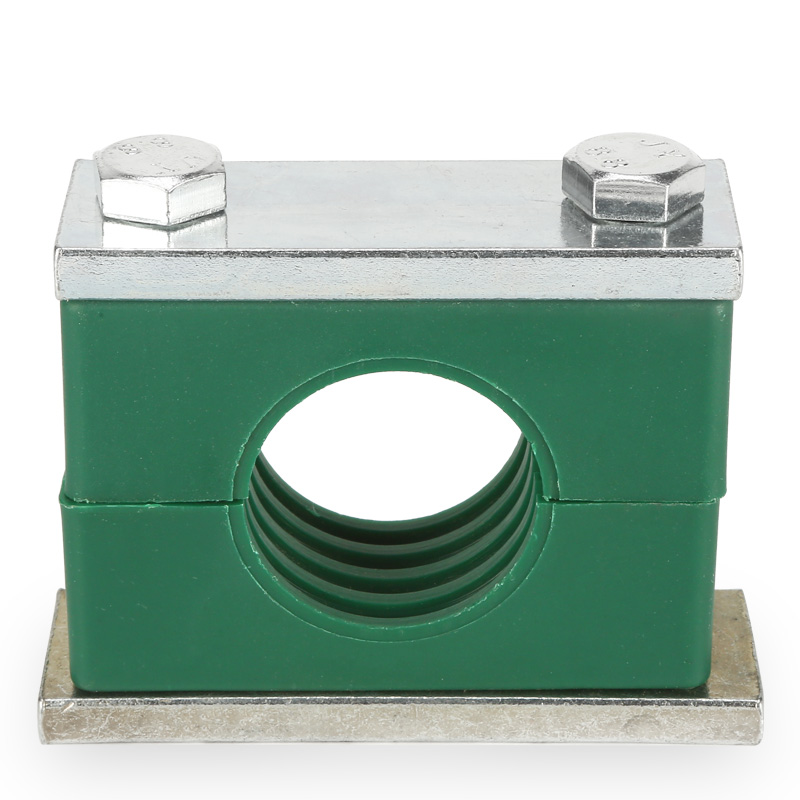

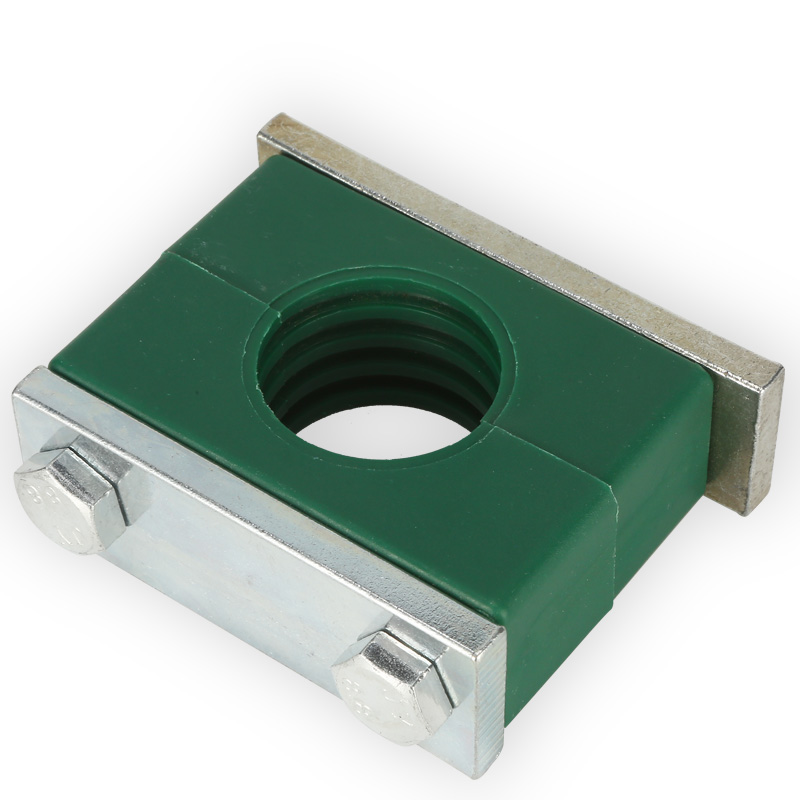

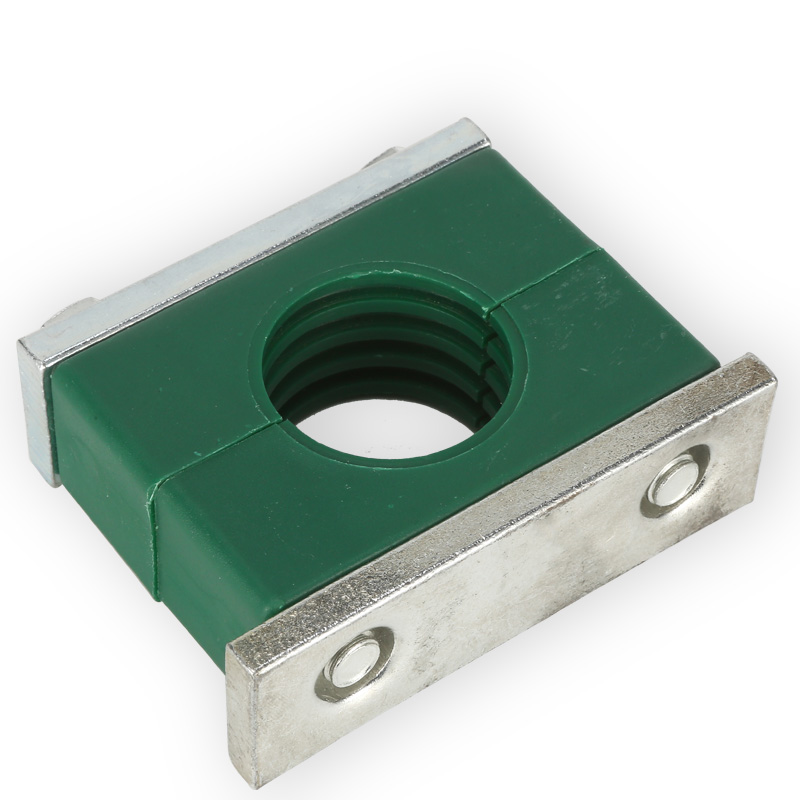

Tube clamp / Green Plastic And Aluminum Tube Clamps / Plastic and Aluminum Heavy Duty Pipe Clamp / 8mm Outer Diameter Pipe Clips Metric Hydraulic Pipe Clamp for Oil Water Gas Pipe Line Fixing




Structure
Hydraulic
Size Range
1/2
Material
Stainless Steel, Aluminum, Plastic, Steel
Locking Screw
M6X20, M6X25, M6X30
Surface Finishing
Metal
Finishing
GOOD
Grade
CS +PP
Packing Type
Box
Diameter (Inch)
1/4'' TO 8''
Corrosion Resistant
Yes
Shape
Square
Material Grade
CS + PP
Weight (g)
As Actual
Pressure (Bar)
Upto 500 Bar
Design
DIN 3015
Condition
New
COLOR
Green
DIN
3015



* Heavy Duty Pipe Clamps are used in installations where heavy pipes and high vibrations are encountered
* They are invariably used for trench layout of pipes and in open-weather conditions
* Heavy Duty Pipe Clamps are available with weld plate mounting for all sizes and channel mounting with special "T" nuts for pipe
sizes upto 1" or 38 mm OD
* Channels are available in lengths of 1 meter and are economical for multiple mounting on single channel
* Both weld plate and channel mounting designs are available only with top plate in view of the heavy vibration and loading
encountered where there are used
* Heavy Duty Clamps with polypropylene bodies are available for pipe size upto 8" or 220 mm OD in the current program
* Heavy Duty Pipe Clamps are also available in vertical mounting arrangement and horizontal multi-clamp arrangement either back to
back or run
* Both Standard Duty and Heavy Duty pipe clamps are also available in other mounting forms for compact and efficient piping where
the installation has multiple lines stacked vertically or horizontally
* They may be used in horizontal back to back mounting where excessive loads and vibration are encountered
