SK-FW Flange Adapter(DIN Flange) / Instrumentation Flang Adaptor China Manufacture / 316L Stainless Steel / Compression Fitting / Double Flange Adapter / Conflat Flange (CF) Twin Ferrule Flang Adapter









1.Available in size: 1/16" to 1", and 2mm to 25mm.
2.Working temperature:-325℉~800℉ (-198℃~426℃).
3.Material grades: SS 304, SS 316, Brass, Special Alloys.
4.Thread:NPT, BSP, BSPT, UNF, ISO, SAE etc.
5.Zero leakage even under tough working conditions.
6.High quality silver plated threads on nuts to ensure no galling on the body threads.
7.Simple to operate and save time and cost because of the usage of elastic seal.
8.Available in wide variety of configurations.
9.It can be reused.

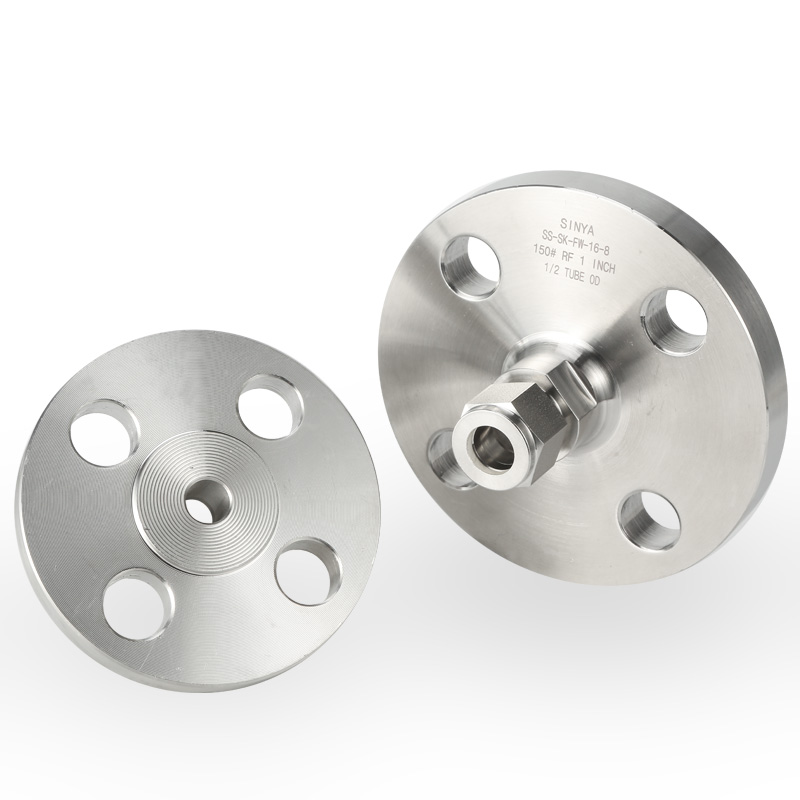

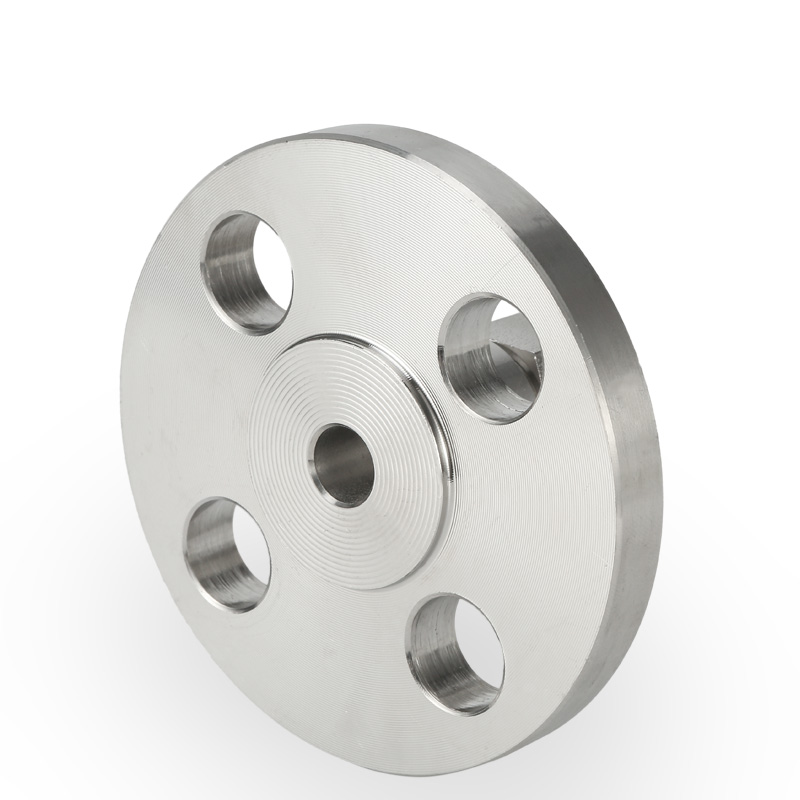

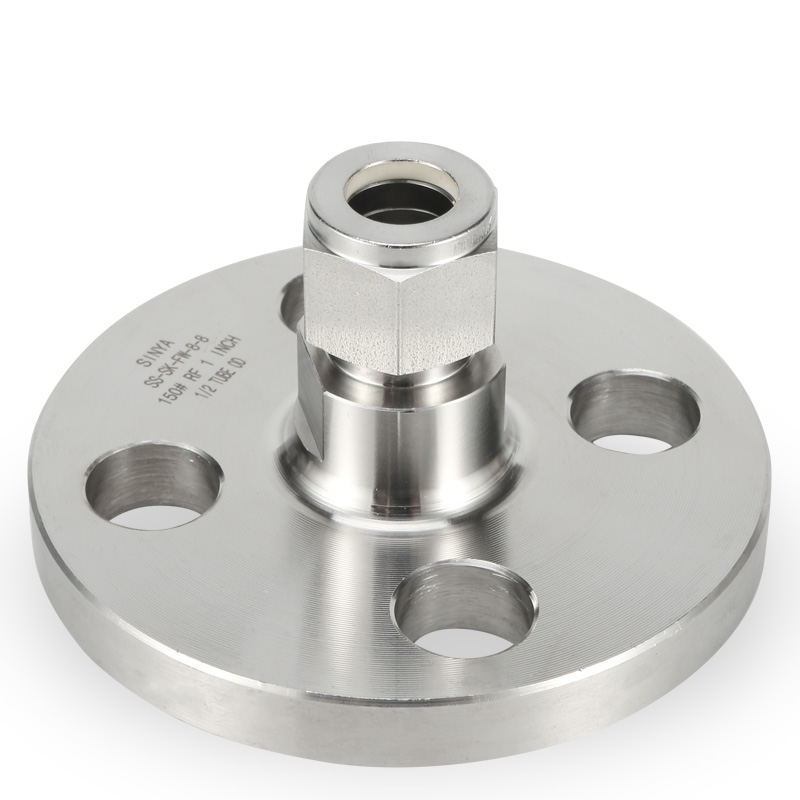

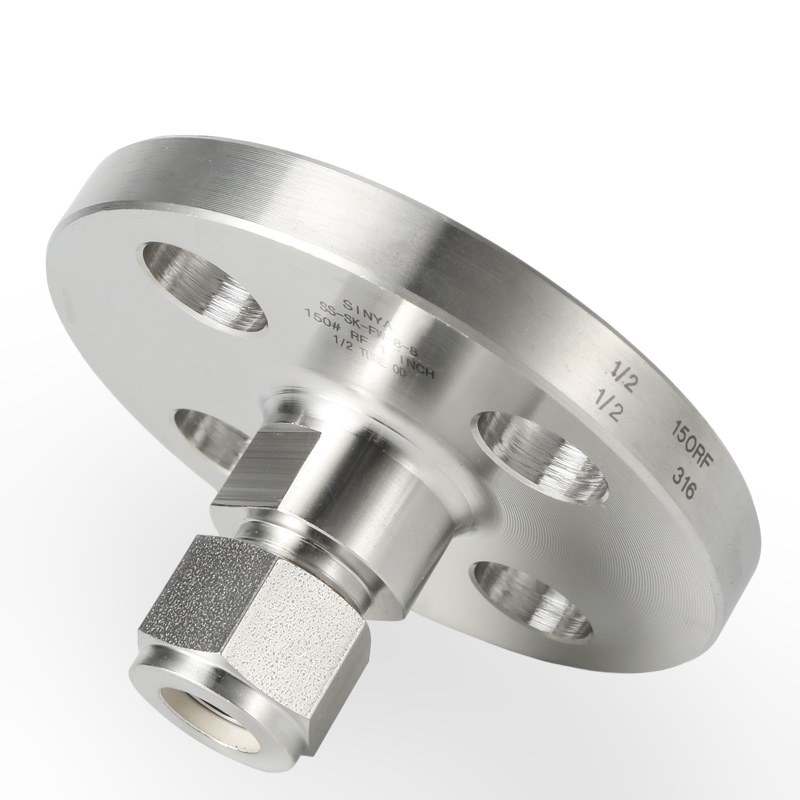

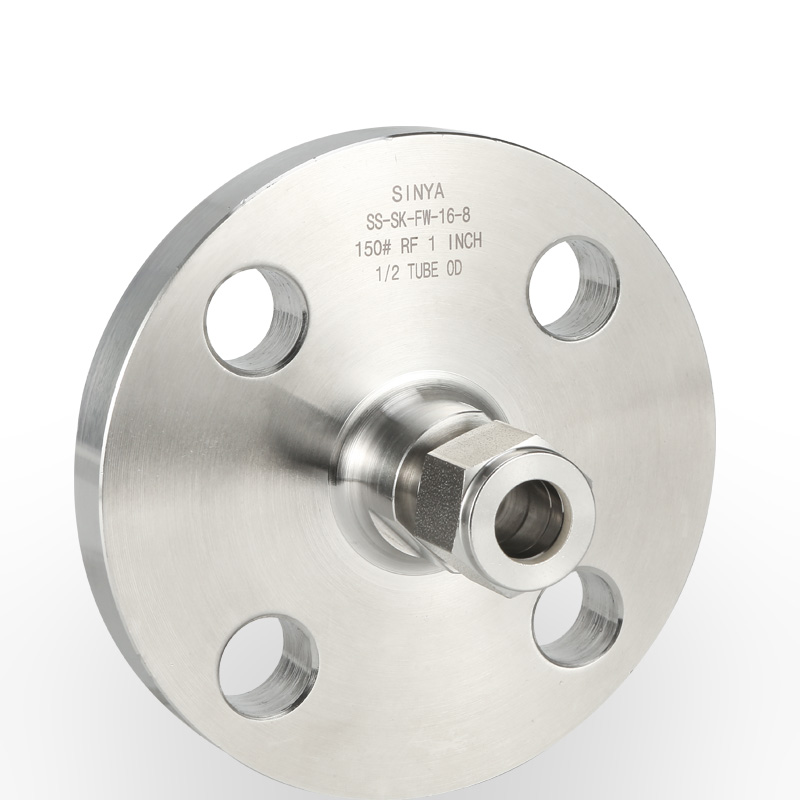

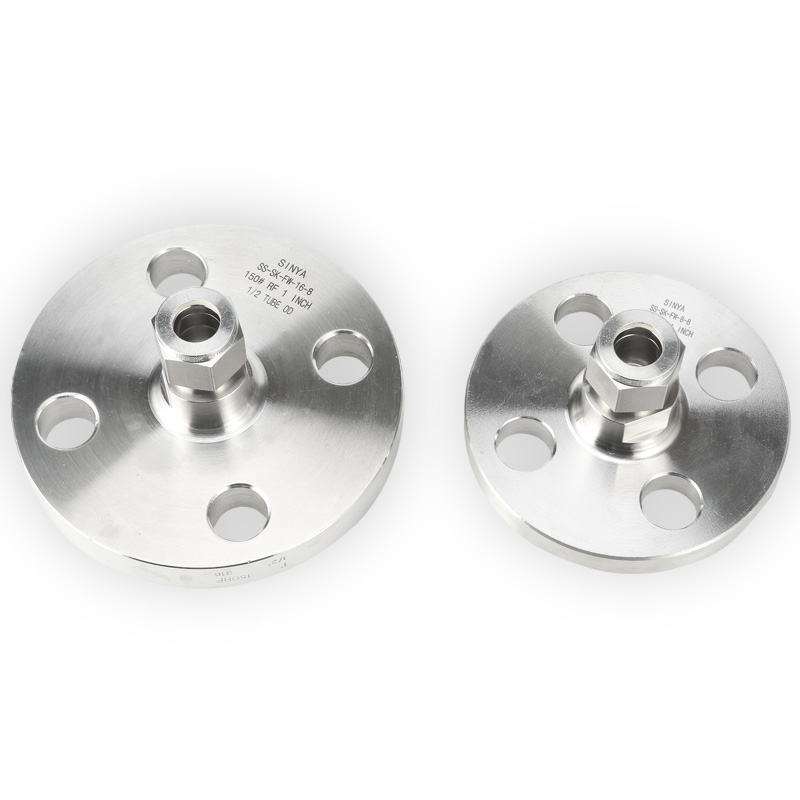

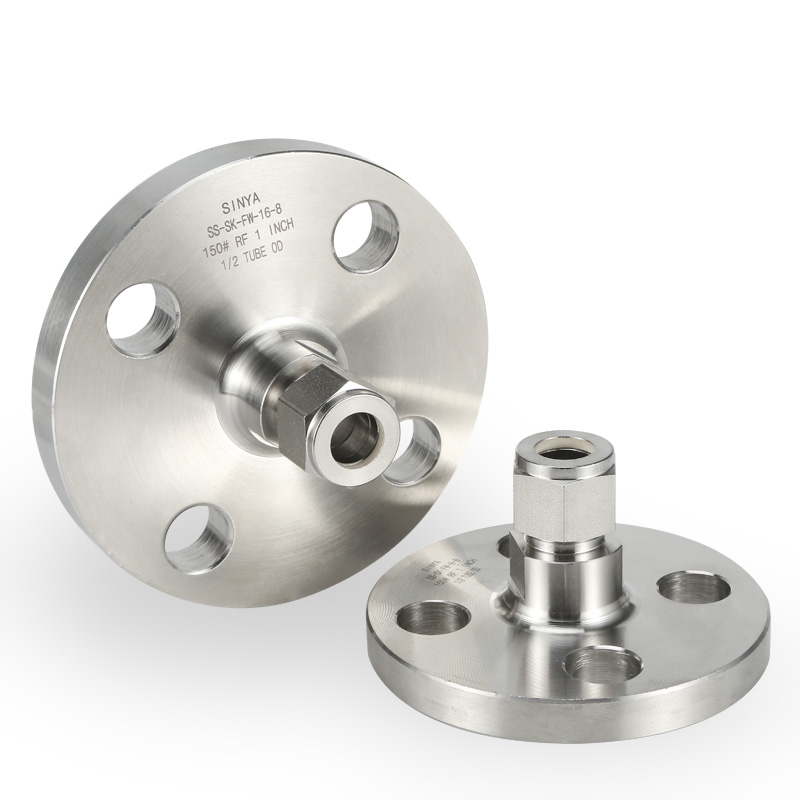

-SK-FW Flange Adapter(DIN Flange)

Order information
A
DN

PN
L
(mm)
(in)
(in)
(mm)
-SK-FW-6mm-16
6
1
4.0
1.87
47.5
-SK-FW-12mm-8
12
1/2
4.0
1.91
48.5
-SK-FW-12mm-16
12
1
4.0
1.99
50.5
-SK-FW-12mm-32
12
2
4.0
2.18
55.3
-SK-FW-18mm-8
18
1/2
4.0
2.04
51.8
-SK-FW-18mm-16
18
1
4.0
2.12
53.8
-SK-FW-25mm-16
25
1
4.0
2.52
64.0

Order information
B
D
J
(in)
(mm)
(in)
(mm)
(in)
(mm)
-SK-FW-6mm-16
4.53
115
0.19
4.8
3.35
85.0
-SK-FW-12mm-8
3.74
95
0.37
9.5
2.56
65.0
-SK-FW-12mm-16
4.53
115
0.37
9.5
3.35
85.0
-SK-FW-12mm-32
6.50
165
0.37
9.5
4.92
125.0
-SK-FW-18mm-8
3.74
95
0.06
1.5 1
2.56
65.0
-SK-FW-18mm-16
4.53
115
0.06
1.51
3.35
85.0
-SK-FW-25mm-16
4.53
115
0.86
21.8
3.35
85.0
