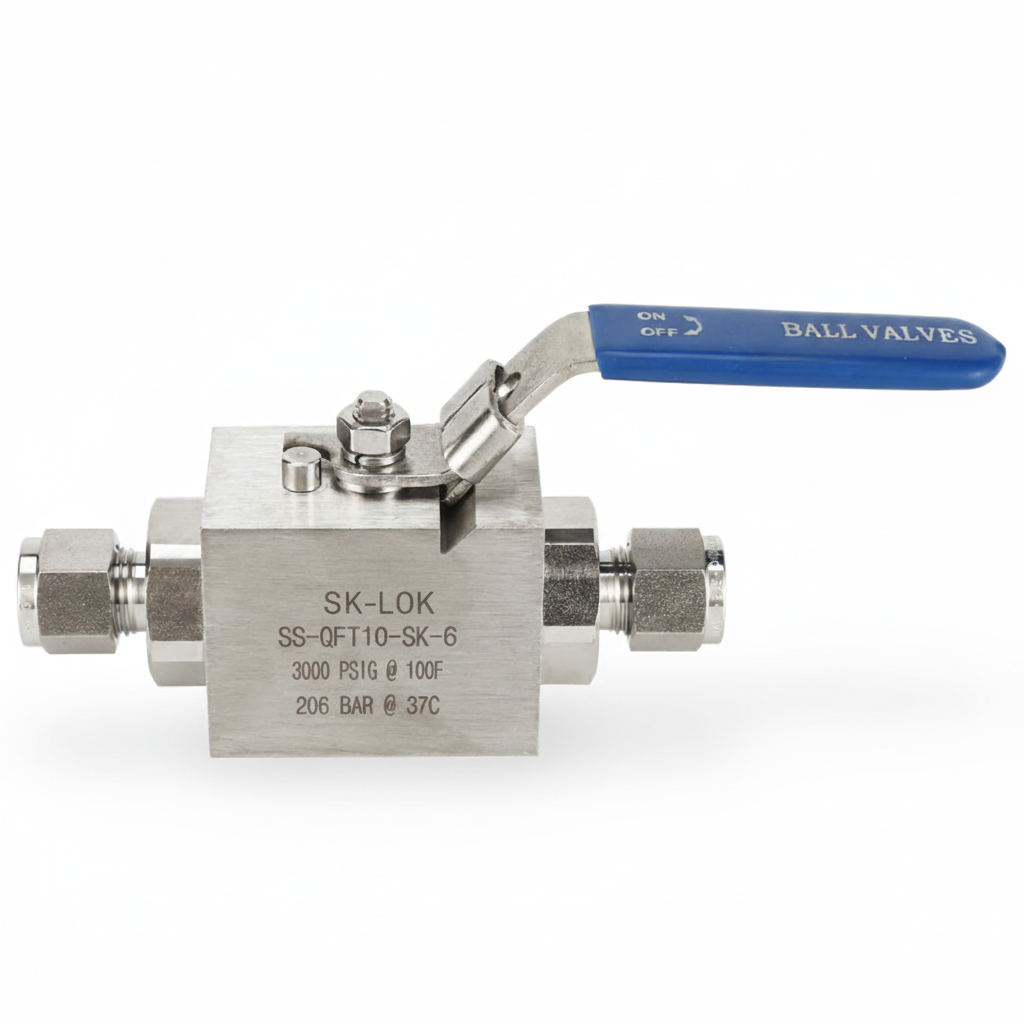

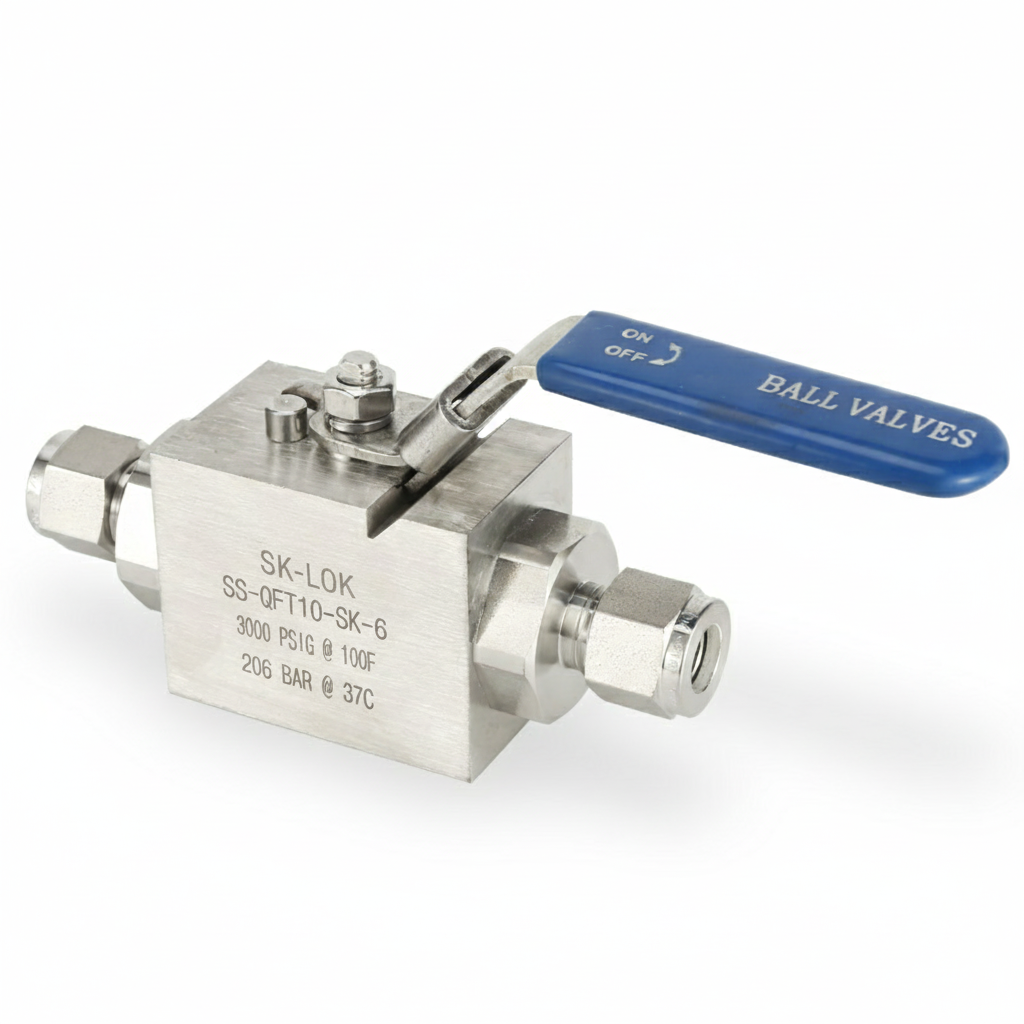

QFT10-SK Closedown Ball Valve with Ferrules/ Stainless steel 316/316L / Twin Ferrule 2 Way Ball Valve / 1/2'' Tube Fitting Double Ferrule Tube End / Instrument General Use Compression Ends Ball Valve
QFT10-SK Closedown Ball Valve with Ferrules/ Stainless steel 316/316L / Twin Ferrule 2 Way Ball Valve / 1/2'' Tube Fitting Double Ferrule Tube End / Instrument General Use Compression Ends Ball Valve
1.Size 1/8~1" and 3~25mm end connection
2.Working temperature:-17℃ to 232℃
3.Material grades:
SS 304/304L ,SS 316/316L,Alloy.
4.Sealing test with nitrogen of 1.1 times of operating pressure should be done to each valve.
5.Zero leakage even under tough working conditions.
6.The valve stem is split from the valve ball and the top seal packing can be adjusted online.
7.The medium is of bidirectional flow and can be installed on plates or pads.
8.Available in wide variety of configurations.

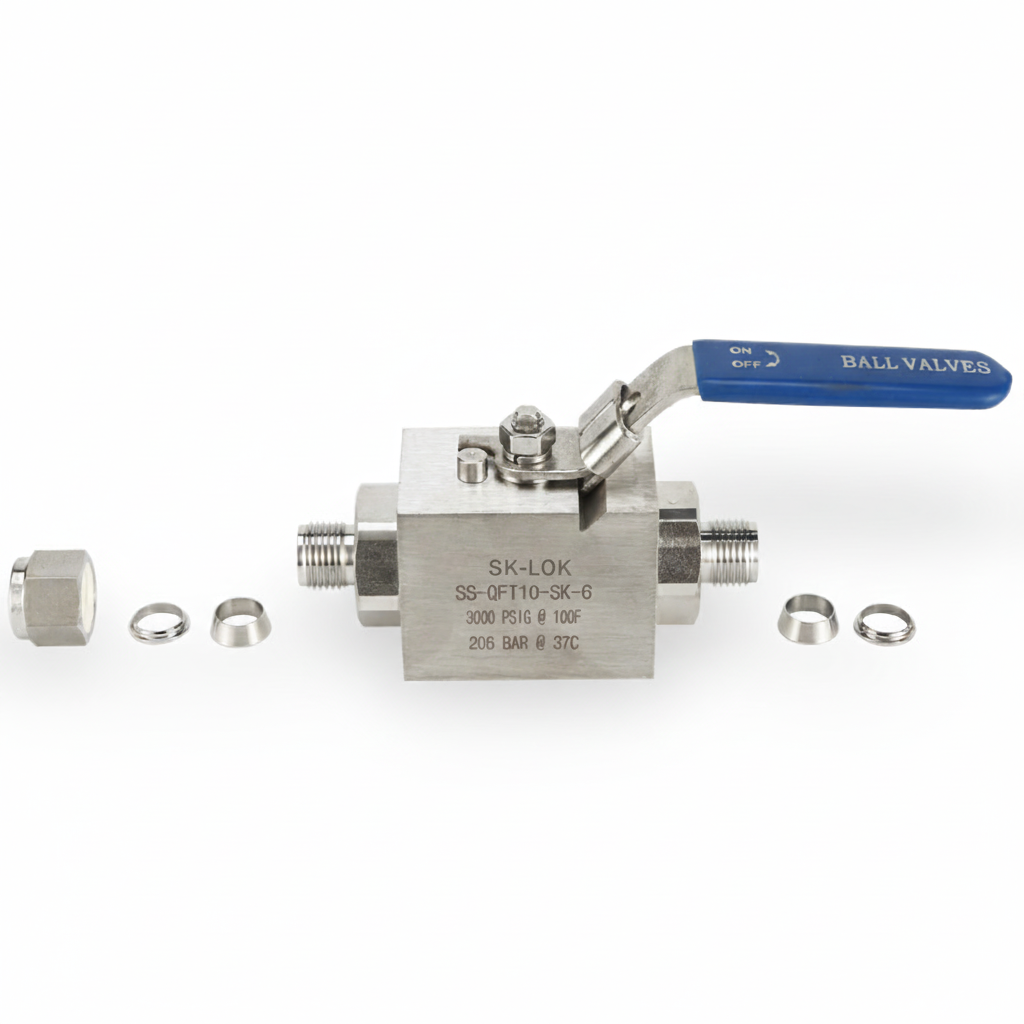

-QFT10-SK Closedown ball valve with ferrules
Order information
T
L
Orifice
OD
(in)
(mm)
(in)
(mm)
-QFT10-SK-4
1/4in
3.54
90
0.2
5
-QFT10-SK-6
3/8in
3.5 4
90
0.2 8
7
-QF T10-SK-8
1/2in
3.7 4
95
0.3 5
9
-QF T10-SK-12
3/4in
4.4 1
112
0.4 7
12
-QF T10-SK-16
1in
5.1 2
130
0.5 9
15
-QF T10-SK-6mm
6mm
3.5 4
90
0.2 0
5
-QF T10-SK-8mm
8mm
3.5 4
90
0.2 8
7
-QF T10-SK-10mm
10mm
3.7 4
95
0.3 5
9
-QF T10-SK-12mm
12mm
3.8 6
98
0.4 7
12
-QF T10-SK-14mm
14mm
3.8 6
98
0.4 7
12
